7000TL
Delivery time for the 7000TL is 6-8 weeks, Free delivery to UK Mainland except to Scotland

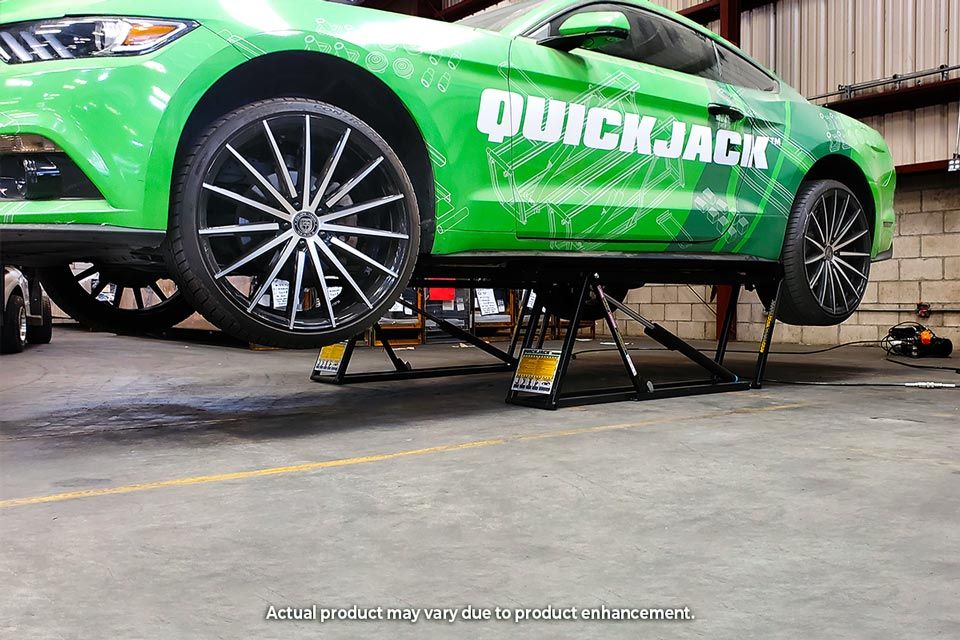

7000TL now lifts to an impressive 24.5″ lifting height. Reinforced upper frame rails give this lift enough strength to effortlessly raise passenger cars, light-duty trucks, and SUVs. For higher ground-clearance vehicles, don’t forget to pick up our truck adapter set. The extra spacers will offer additional lifting height!
CAPACITY (LBS)
LIFTING HEIGHT
LOWERED HEIGHT

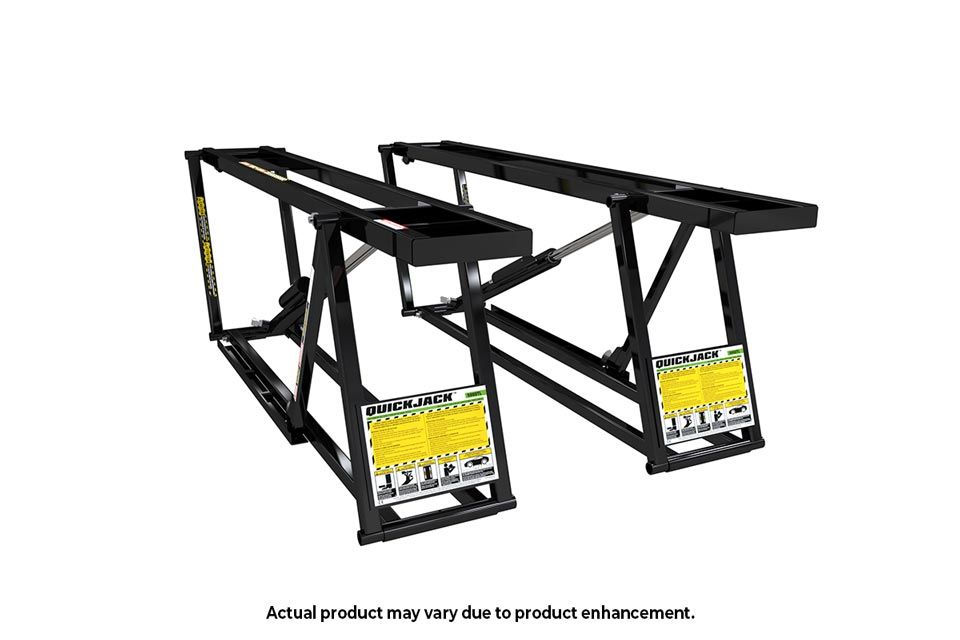

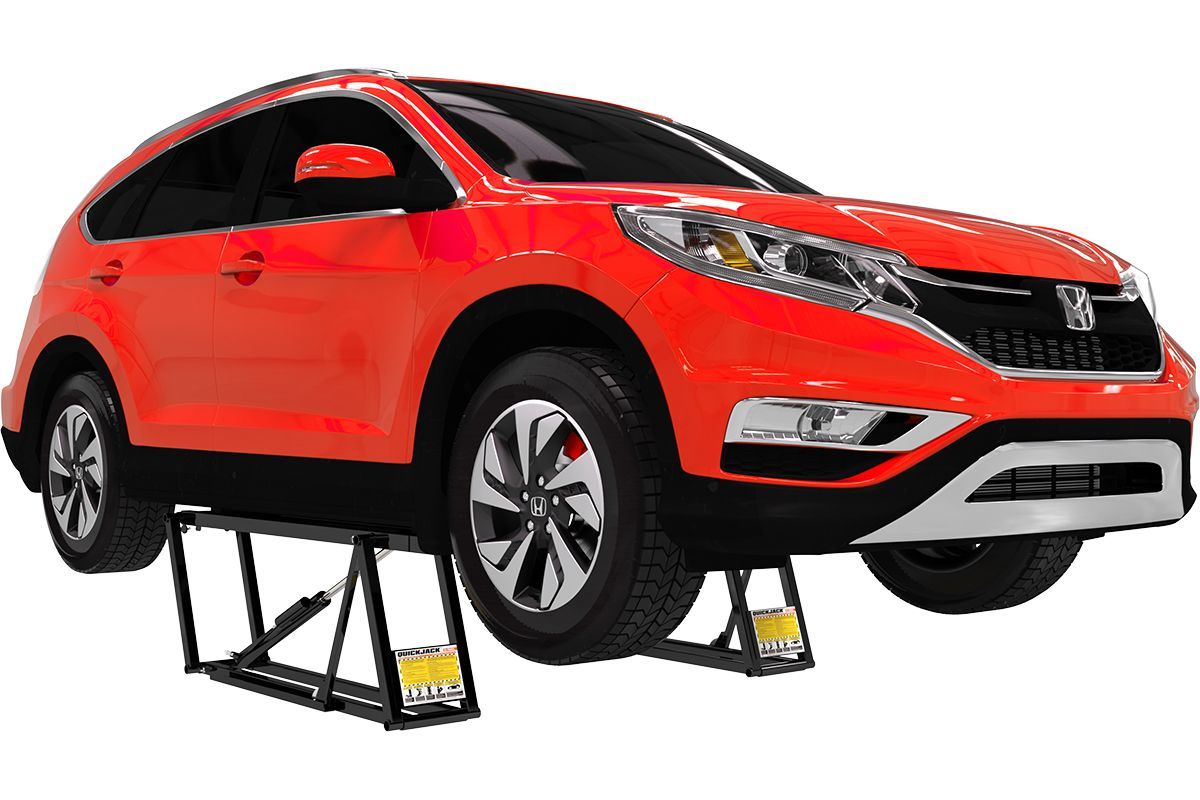

7000TL Portable Light Duty Truck and Passenger Car Lift System
QuickJack 7000TL is the only portable truck lift capable of getting trucks and SUV tires completely off the ground. With the addition of the optional Light Truck & SUV Adapters, the 7000TL has an incredible 27" lifting height. 7000TL is the highly-anticipated sequel to the most popular automotive tool to ever hit the home garage or auto repair shop. With the ability to lift an extra 3 inches, 7000TL portable car lift provides more room to tackle every repair and maintenance task on vehicles, trucks, and SUVs weighing up to 7,000 lbs.

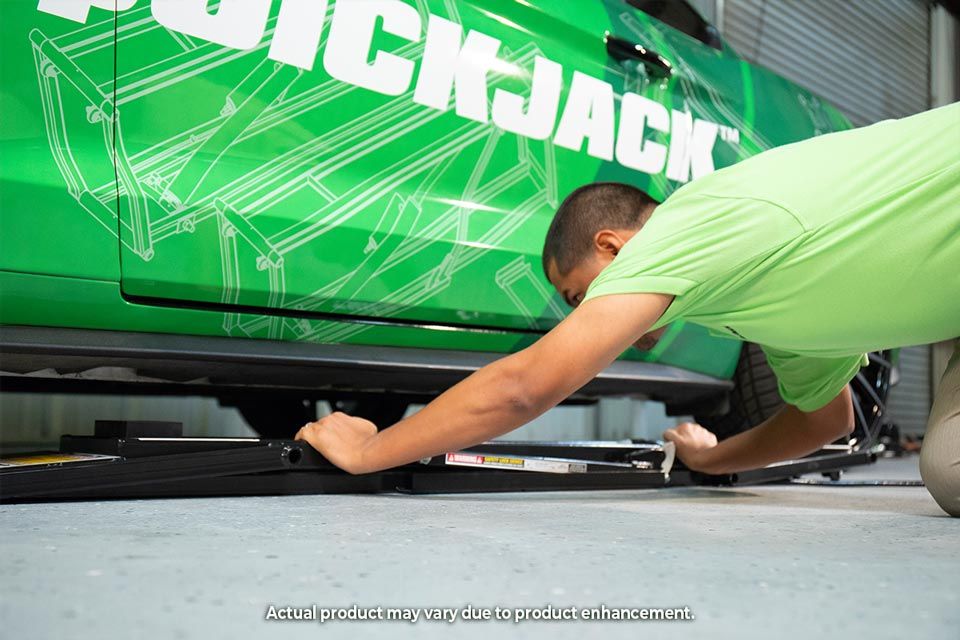

Through superior engineering and design, we've been able to produce an extra 3-inches of lifting height without sacrificing the overall dimensions that has made QuickJack a must-have in your garage. 7000TL still has an impressive 3.5" lowered height, 70.75" overall length, and 12.5" overall width.
What's the difference between the NEW TL Models vs. SLX Models?
The biggest difference between the 7000TL and BL-7000SLX is the lifting height, which has increased 3 inches. This provides ample room to perform all the common vehicle maintenance tasks and allows you the capability to perform even the most complicated repairs.
Overall dimensions have remained the same, so you'll continue to benefit from what made QuickJack so popular in the automotive community and that is its super-low 3.5" lowered height. The minimum lifting point spread did change from 31.5" to 37", but this will not make a difference to the vast majority of 7000TL users.
I already own a QuickJack, can I purchase the frames individually?
Yes! You can purchase the left frame and right frame individually without a power unit. Just make sure to follow the bleeding procedures on the new frames before operating. Keep in mind that purchasing frames individually will only include the frames themselves and no support equipment.
Click here to order TL Frames
What is the warranty period on the TL models?
All TL models include a 1-year warranty on equipment structure and operating components that comes standard. You can also purchase an optional 2-year extended warranty. Learn more about QuickJack warranty.
Can I apply any promotions or discounts to the TL model?
There are no promotions or discounts available for the TL models at this time.
Features
Automatic safety locks

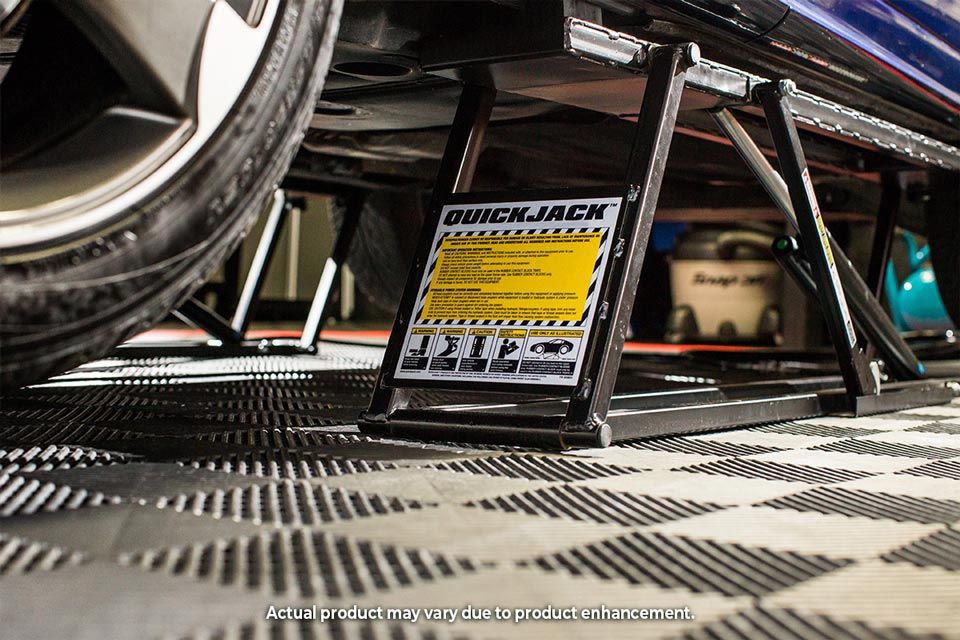

QuickJack 7000TL features automatic safety locks on each TL frame that engage at two positions. As the frames rise, these locks glide securely into place at mid-rise and full-rise. Disengage with a simple flip of the lock bar and your truck lift is ready for a smooth descent.
Increased lifting height

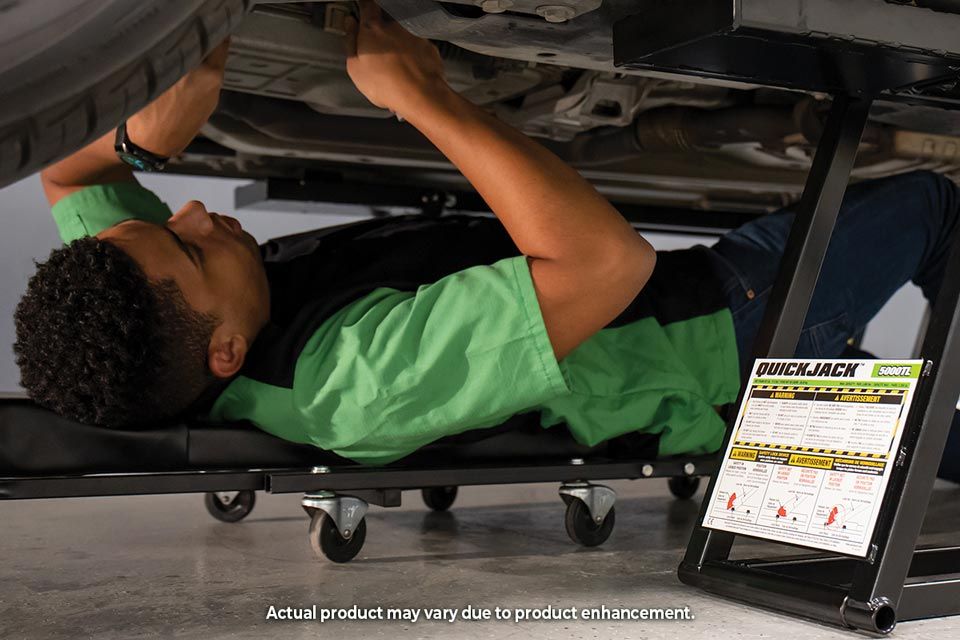

All QuickJack TL models are capable of lifting an extra 3-inches making it easier to perform vehicle maintenance tasks that are both routine and more involved. The extra room gives you more ability and versatility under the vehicle, while doing so in added comfort.
One-handed operation
Simple one-handed controls are really as easy as a push of a button to lift and lower your QuickJack 7000TL. No cranking or bending during lifting.

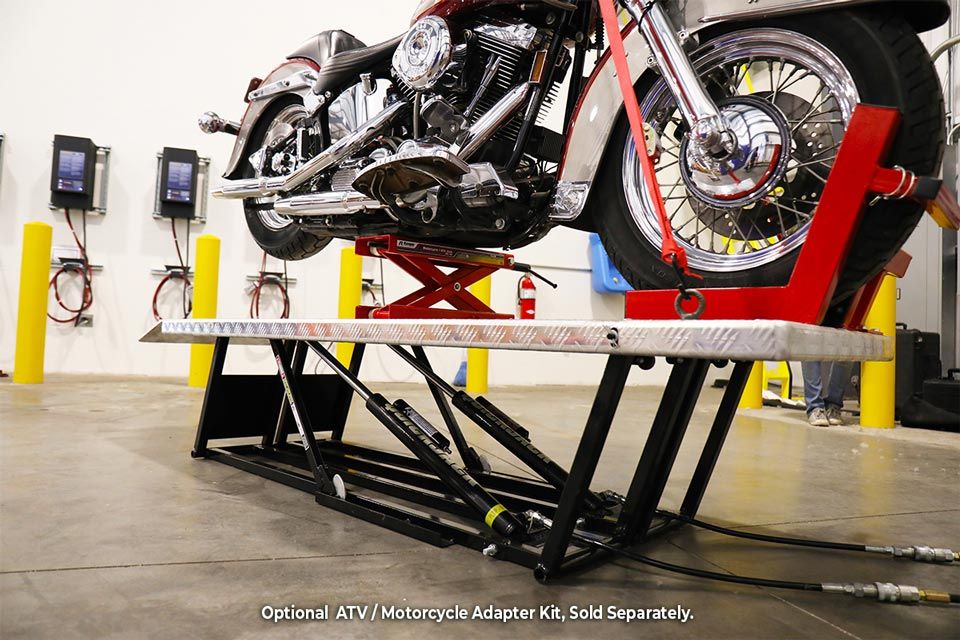

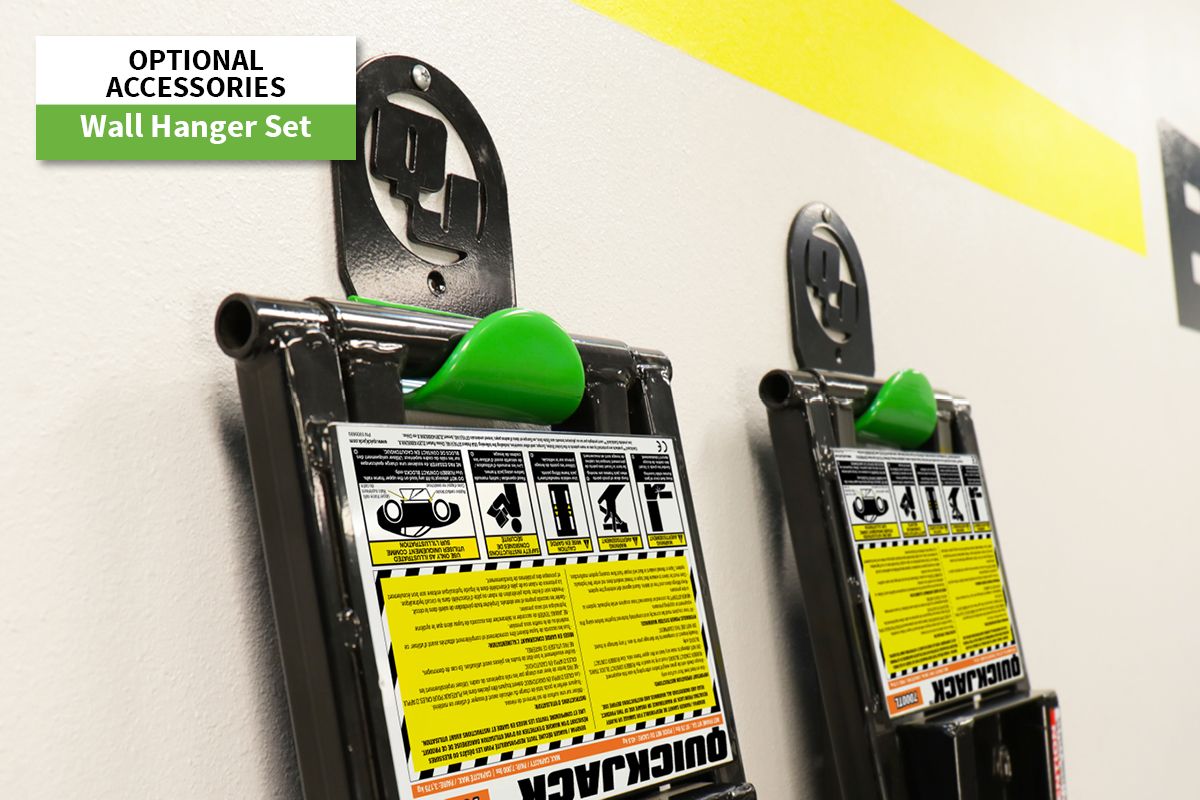

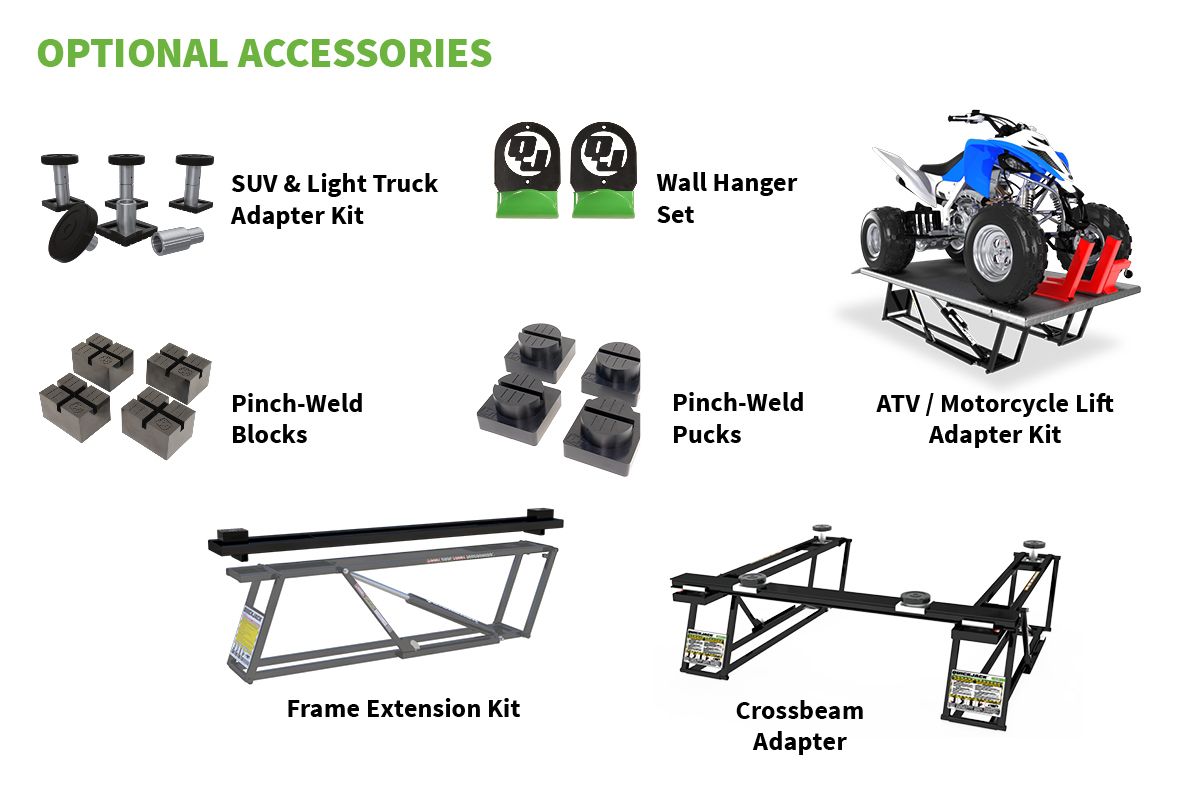

Accessories to increase versatility
Most QuickJack accessories were developed from customer suggestions and needs. We offer many different lifting options and configurations to customize your QuickJack experience to fit your needs and specifications.
Tech specs
Lifting capacity
7,000 lbs. (3,175 kg)
Lowered height
A – Frame only: 3.5″ (89 mm)
B – With 2″ block: 4″ (102 mm)
Lifting height
D – With 2″ block: 21.5″ (546 mm)
E – With 3″ block: 22.5″ (572 mm)
F – Max. height: 24.5″ (622 mm)
G – With adapters: 24.25″ (610 mm)
H – With adapters + pin: 27″ (686 mm)
Lift point spread
I – Maximum: 60″ (1,524 mm)
J – Minimum: 37″ (940 mm)
Frame dimensions (ea.)
K – Width: 12.5″ (318 mm)
L – Length: 70.75″ (1,797 mm)
A – Height (lowered): 3.5″ (89 mm)
Weight: 98 lbs. (45 kg)
Other specs
Time to full rise: 30 seconds
Power unit weight: 15 lbs. (7 kg)
Shipping dimensions (ea. frame):
73.75″ (L) x 16.75″ (W) x 6.25″ (H)
(1,872 mm x 425 mm x 155 mm)
Shipping weight: 280 lbs. (127 kg)

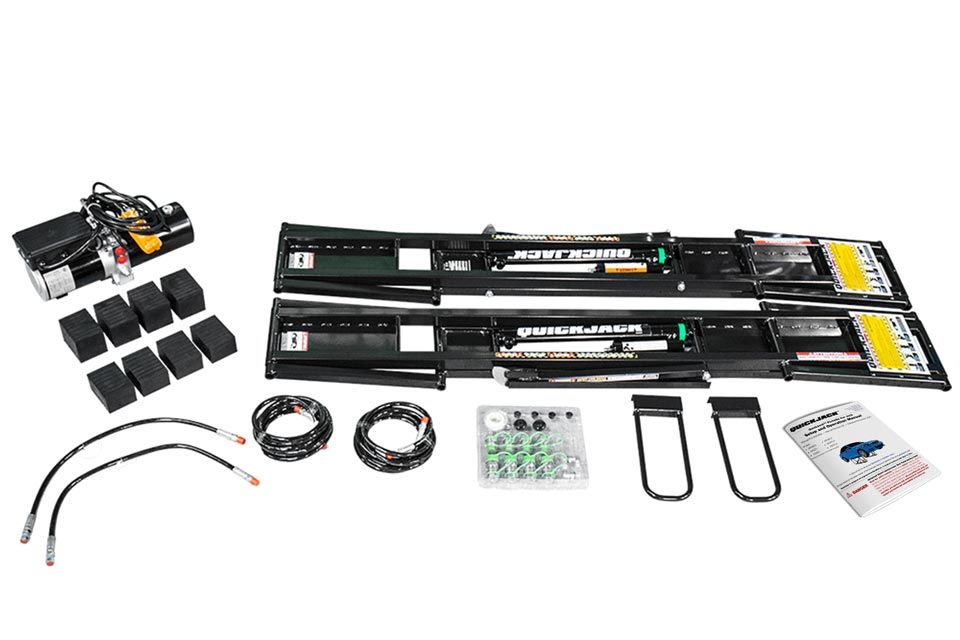

What's inside?
7000TL Left Frame Assembly7000TL Right Frame Assembly1x Hydraulic power unit with control4x Medium rubber lift blocks (2″)4x Tall rubber lift blocks (3″)2x Short hydraulic hoses2x Long hydraulic hoses2x Frame-positioning handlesFittings and thread tape for setupInstruction manual
Requirements:
Up to 3 liters of Automatic Transmission Fluid
Air source to inflate air cylinders up to 50 PSI
Assembly tools
Watch Setup Tutorial
Note: QuickJack is shipped in three boxes
